Tame the city streets, glide assertively through gridlock, potholed asphalt dissolving beneath your wheels. Take charge of your destiny, trace that line of gravel arcing over the horizon. This is the e-Vault's world: a place where investment quality craftsmanship melds with integrated power-assist technology, affording you the agency to take charge of both destination and destiny, to ride farther and faster over more varied terrain than ever before. A world where boundaries fall away and possibilities are limitless.
- Lightest, most compact Fazua Evation drive train and battery module with 252 Watt/hours of pedal assist
- Top-tube integrated sensitive touch control panel with three levels of riding assistance.
- Elegant full carbon frame design featuring proprietary Hollow Core internal molding technology for an optimal stiffness to weight ratio.
- Next-generation gravel/road geometry for all-day comfort on any surface.
- Patent-pending ISO FLEX Technology fits isolates the seatpost from the frame for extraordinary comfort with uncompromising frame stiffness and control.
- Hidden fender mounts for clean, sleek accommodation of all-weather riding and commuting accessories
- Additional Fazua batteries and custom on-the-bike battery bags available at Pivot retailers make ease of carrying a second battery
- Fits up to 700 x 47c and 650b x 2.0" tires
- Sizes XS, S, M, L, XL for riders between 5' (152 cm) and 6'5" (196 cm).

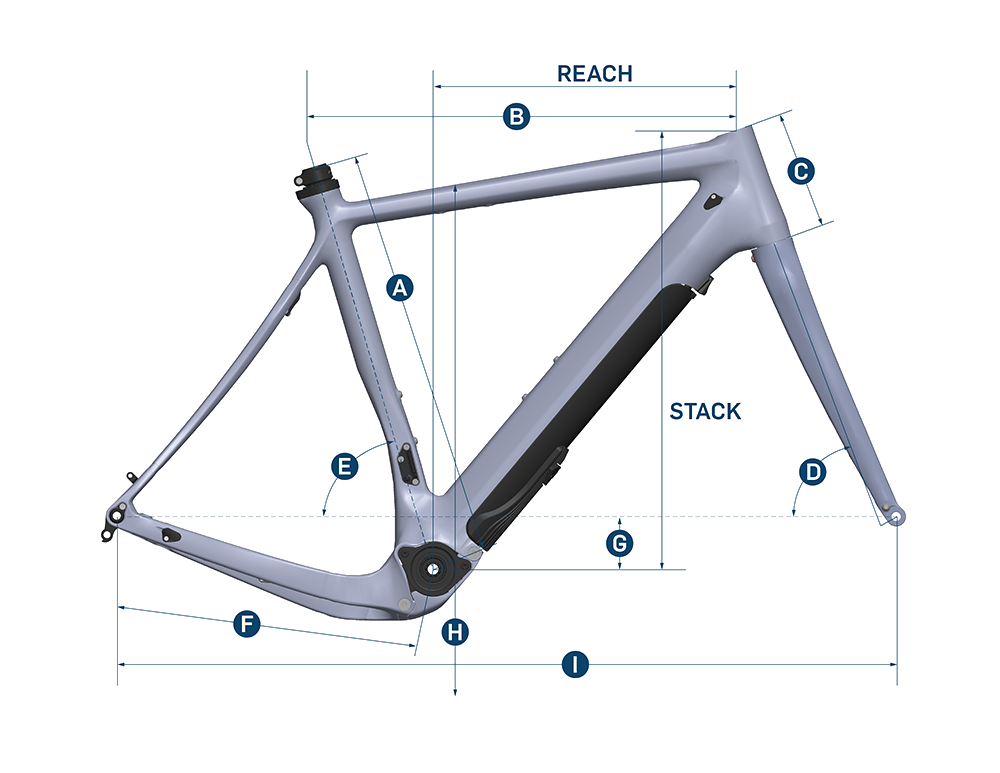

X-Small | Small | Medium | Large | X-Large | |
---|---|---|---|---|---|
A- Seat Tube Length (C-T) | 45.8 cm | 52.8 cm | 54.8 cm | 56.8 cm | 58.8 cm |
B- Top Tube Length | 51.5 cm | 53.8 cm | 56.5 cm | 57.8 cm | 59.0 cm |
C- Head Tube Length | 10.5 cm | 13.0 cm | 15.5 cm | 17.0 cm | 19.5 cm |
D- Head Tube Angle | 70.0° | 71.5° | 72.0° | 72.0° | 72.0° |
E- Seat Tube Angle | 74.8° | 74.0° | 73.5° | 73.0° | 73.0° |
F- Chain Stay Length | 42.0 cm | 42.0 cm | 42.0 cm | 42.0 cm | 42.0 cm |
G- Bottom Bracket Drop | 7.0 cm | 7.0 cm | 7.0 cm | 7.0 cm | 7.0 cm |
H- Standover Height | 70.5 cm | 76.6 cm | 78.7 cm | 80.5 cm | 82.5 cm |
I- Wheelbase | 100.0 cm | 100.2 cm | 102.0 cm | 102.8 cm | 103.8 cm |
Stack | 52.0 cm | 54.9 cm | 57.4 cm | 58.9 cm | 61.2 cm |
Reach | 37.4 cm | 38.1 cm | 39.5 cm | 39.8 cm | 40.0 cm |
Due to supply chain issues, Pivot cannot provide spec information at this time. Please visit our store in-person to learn more.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Stealth / Large / Alloy Wheels | 196338000109 | 00EVTV170AGRX--BLKLGSTDHN | 210000042050 |
